Android Development

The Android device screen serves as the main surface where an application displays its features and information, such as buttons, lists, images, and other visual and interactive elements presented through default or custom themes. A well-designed user interface (UI) should be visually appealing, intuitive to use, and consistent in its design across different orientations, screen sizes, and devices from various manufacturers (e.g., Google, Samsung, Xiaomi).

For native Android apps, user interfaces are commonly built using one of the following two ways:

• Android View System.
• Jetpack Compose.

The Android View System follows an imperative programming approach, where UI elements are explicitly defined using XML layout files or programmatically in Kotlin or Java within Activity or Fragment classes. While XML provides a convenient and readable way to design user interfaces, at runtime the Android system converts these XML definitions into corresponding Kotlin or Java objects. Alternatively, the entire UI can be created programmatically in Kotlin or Java without using XML.

Various graphical user interface elements are created using View and ViewGroup objects. These elements include controls such as buttons and text boxes, as well as images, fonts, colors, themes, and other visual components. They are organized within invisible containers called layouts, which areViewGroup objects responsible for positioning their child View elements on the screen.

Below are some of the key concepts related to Android View based UI:

• Android View Hierarchy
• View Controls
• Custom User Interface
• UI Styles and Themes
• Android App Widgets
• Rendering Challenges and Solutions in View-Based UIs

Android View Hierarchy

The Android view system is structured like a tree. At the top is a single root ViewGroup (such as ConstraintLayout, LinearLayout, or FrameLayout), which contains other ViewGroups or individual Views. Each ViewGroup can hold one or more children, either simple UI components (like TextView, Button, ImageView) or nested layouts.

For example, a typical screen might start with a root ConstraintLayout, containing a Toolbar and a ScrollView. The ScrollView could contain a vertical LinearLayout, which holds several TextViews, Buttons, or other widgets. This forms a hierarchical structure, or a "view tree" , where every view has a parent, and possibly children.

Understanding this hierarchy is important because layout performance, event handling, and view rendering in Android all depend on how views are arranged in this tree. A deep or overly complex hierarchy can lead to slower rendering and higher memory usage. Keeping the hierarchy well-structured by minimizing unnecessary nesting, using appropriate ViewGroup types, reusing views when possible, and applying other design optimizations as appropriate for the specific app helps improve rendering speed, responsiveness, and overall performance.

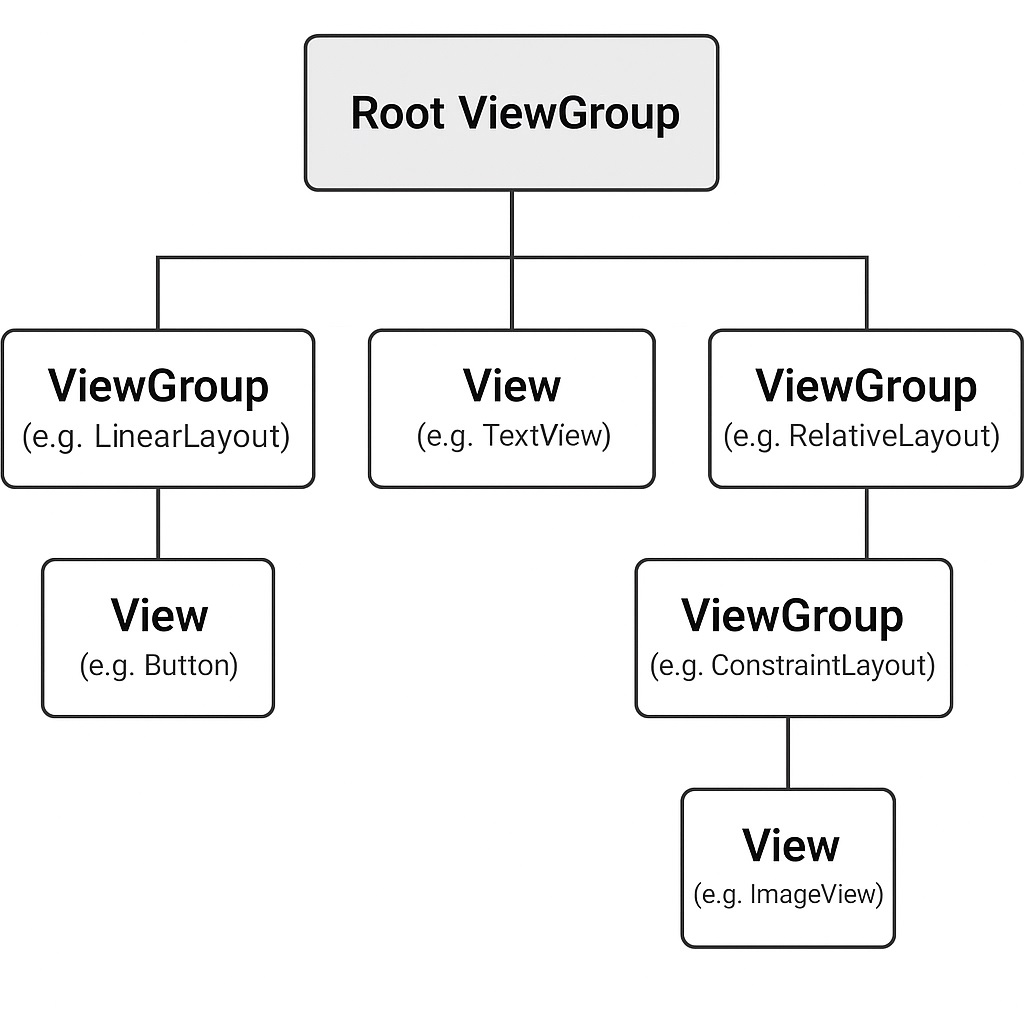

Image: Android View Hierarchy

The diagram above illustrates a generic Android View Hierarchy. The Root ViewGroup is typically a layout container such as ConstraintLayout, LinearLayout, or FrameLayout. Child ViewGroups can include other layout types or components like ScrollView, Toolbar, or nested LinearLayout. Leaf nodes (Views) represent UI elements such as TextView, ImageView, Button, etc. The hierarchy defines how views are measured, laid out, and rendered on the screen.

The Android framework traverses this hierarchy during the layout, draw, and event phases of the UI lifecycle.

Views are often defined in XML files under res/layout/. These layouts describe how views are arranged on screen. At runtime, Android uses a process called inflation to convert these XML elements into actual view objects in memory.

<!-- res/layout/activity_main.xml -->
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <TextView
        android:id="@+id/myTextView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Android Tutorial!" />
</LinearLayout>

In activities or fragments, you link XML layouts using the setContentView() method. This inflates the XML and attaches the resulting views to the current window.

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main) // Inflates the XML layout
    }
}

Instead of XML, UI can be created partially or entirelyin code using Kotlin or Java. This gives fine-grained control over layout and view logic.

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        val layout = LinearLayout(this)
        layout.orientation = LinearLayout.VERTICAL

        val textView = TextView(this)
        textView.text = "Android Tutorial!"
        layout.addView(textView)

        setContentView(layout)
    }
}

View Controls

The Android framework provides a wide variety of default input and interactive UI elements, known as view controls. These help capture user input, display data, and enhance app usability.

Basic Input Controls

• Button – A basic clickable button for triggering actions.
• ImageButton – A button that displays an image instead of text.
• RadioButton – Allows single selection from a group of options.
• CheckBox – Allows selection of multiple independent options.
• Switch – A toggle switch for on/off states.
• ToggleButton – A button with two states: on and off.
• EditText – A text input field for user-entered text.
• TextView – Displays static or dynamic text to the user.
• Floating Label for EditText – Label that animates above the input when focused or filled.

Selection Tools

• Spinner – A dropdown menu for single selection from a list.
• Dropdown Menu – A list that appears when a user clicks to choose an item.
• DatePicker – Enables the user to select a date from a calendar UI.
• TimePicker – Allows selection of a time (hour and minute).
• RatingBar – Displays and collects user rating via stars.

Feedback and Notifications

• Toast – Displays a brief message at the bottom of the screen.
• Snackbar – A brief message that appears at the bottom with optional action.
• AlertDialog – Shows modal pop-up messages with buttons.

Layout and Navigation

• Toolbar – A flexible and customizable replacement for the action bar.
• ActionBar – Provides app title, navigation, and actions.
• ActionBar Tabs – Allows navigation between different fragments or views.
• NavigationDrawer – A side panel for navigating different app sections.
• FloatingActionButton (FAB) – A circular button for primary app actions.

Advanced Views

• RecyclerView – A flexible and efficient way to display scrollable lists of items.
• WebView – Displays web pages and HTML content within your app.
• Sliding Menu with WebView – A sliding panel with embedded web content.
• Design Support Library – Adds Material Design components and behaviors like CoordinatorLayout, BottomSheet, etc.

Custom User Interface

Custom Layout

Creating custom layouts in Android involves extending the ViewGroup class to define how child views are arranged and measured. This is useful when existing layout types (like LinearLayout or ConstraintLayout) don’t meet required design needs.

• Extend ViewGroup: Subclass ViewGroup to create your own layout container.
• Override onLayout(): Position child views based on custom logic.
• Override onMeasure(): Measure child views and determine the layout’s final size.
• Optional Methods: Override onInterceptTouchEvent() or dispatchDraw() for more control if needed.

Custom Views

When there is need of a unique UI component or to extend existing behavior, custom views can be built by:

• Extending existing widgets: New UI components can be created by building on top of standard Android widgets. This approach keeps the built-in functionality while adding custom behavior or appearance. For example, a subclass of TextView or Button can provide app-specific features. A CustomButton might change its background color when clicked, or a StyledTextView could be designed to apply a specific font, text size, and padding.
• Extending the base View class: This means creating a brand-new component starting from the lowest-level building block. Override onDraw() to fully control the visual appearance (drawing shapes, text, or images manually) and onTouchEvent() to handle user interaction. This is needed only when no existing widget fits needs.
• Creating Compound Views: Combine multiple standard views into a reusable component, often used for form fields or custom cards. For example, a login form combining EditText for username, EditText for password, and a Button for submission, or a custom card that includes an ImageView with a TextView. This lets reuse existing widgets without drawing everything from scratch.

Choose the approach based on how much customization the UI needs. Extending widgets works for small tweaks, compound views help reuse multiple widgets, while extending the raw View class gives full control for unique custom components.

UI Styles and Themes

Material Design

Material Design is Google's open-source design system for Android and web interfaces, introduced in 2014 as a major overhaul of the company's design language. It replaced the previous Holo theme and introduced significant visual and structural changes, including an updated color system, new typography and guidelines for the Roboto font, and three-dimensional effects with shadows and elevation. The system provided a consistent framework for layout and interaction patterns, with new or adapted components like CardView and RecyclerView to create more visually rich and organized interfaces.

Material Design has evolved through several versions, with the latest iteration, Material 3 (or Material You), emphasizing dynamic color and personal expression across its platforms, including Android devices and web applications. Instead of one fixed visual style, it adapts the app’s appearance to reflect the user’s wallpaper, preferences, and device settings, making the experience feel more personal and dynamic.

Key Features of Material You

• Dynamic Theming: Colors are derived from the user’s wallpaper to create a cohesive, personalized look.
• Updated UI Components: Widgets like MaterialButton, NavigationRail, TopAppBar, and Card include Material styling out of the box.
• Motion & Interaction: Context-aware animations guide attention and reinforce visual hierarchy.
• Elevation & Shadow: Depth is represented using elevation layers and shadows.
• Typography: Scalable text styles (displayLarge, headlineSmall, bodyMedium) promote clarity and accessibility.
• Responsive Layouts: Grid-based designs flexibly adapt to different screen sizes and orientations.
• Dark Theme Support: Interfaces automatically switch based on the system’s light or dark mode preference.

How to Add Material Design to Android Project

1. Add Material Design dependencies to build.gradle:


   dependencies {
       implementation 'com.google.android.material:material:latest_version'
   }


2. Set your app's theme in res/values/themes.xml:


   <style name="AppTheme" parent="Theme.Material3.DayNight.NoActionBar">
       <item name="colorPrimary">@color/my_primary</item>
       <item name="colorSecondary">@color/my_secondary</item>
   </style>


Customization Tips

• Custom Fonts: Add font files to res/font/ (e.g., res/font/roboto_medium.ttf) and reference them using fontFamily="@font/roboto_medium" in XML or TextView.typeface = ResourcesCompat.getFont(context, R.font.roboto_medium) in code.
• Theme Overlays: Use ThemeOverlay. styles to override specific components without affecting the base theme. For example, apply a custom button theme via style="?attr/materialButtonOutlinedStyle" or use Theme.Material3.DayNight.NoActionBar as a base.
• Color Schemes: Define color values in colors.xml and reference them in your themes.xml under colorPrimary, colorSecondary, etc. For Material 3, use colorScheme attributes. Try Material Theme Builder to generate a full palette.

Material Design principles are applicable in both the traditional View-based Android UI and the modern Jetpack Compose framework, ensuring consistency across legacy and new projects. Find more about implementing Material Design in Android at the official Android Material theming documentation.

Android App Widgets

App widgets are self-contained UI components that provide specific functionality. They can be categorized into two main types:

• In-App Widgets: Embedded within the application's user interface. Examples include buttons, text views, sliders, or mini-calendars displayed inside an app. They help users interact with the app directly.
• Home Screen Widgets: Placed on the device's home screen, outside the app. They offer quick access to specific app features or information, such as weather, news feeds, music controls, or network data updates.

Home SCreen Widgets can be moved or resized according to user preferences. To add a widget to the home screen:

• Touch and hold on an empty space on the home screen.
• Tap Widgets from the menu that appears.
• Select the app and the specific widget you want.
• Tap and hold the widget, then drag it to the desired location.

For a practical example of a home screen widget that makes a network call, see: Widget to fetch JSON data.

Rendering Challenges and Solutions in View-Based UIs

Stuttering and Frame Drops: UI may stutter or drop frames if heavy computations run on the main thread.
Solution: Move heavy computations or data processing to background threads (e.g., using AsyncTask, Coroutines, or Executors) and keep the main thread responsive.

Overlapping Views: Improper layout measurements or complex nesting can cause views to overlap.
Solution: Use proper layout parameters, constraints, or parent layouts that handle children correctly (e.g., ConstraintLayout) and validate layout hierarchy.

Layout Thrashing: Frequent UI changes triggering repeated layout passes can degrade performance.
Solution: Batch updates, minimize unnecessary requestLayout() or invalidate() calls, and prefer data binding or RecyclerViews for dynamic content.

Excessive Overdraw: Rendering multiple overlapping layers forces the GPU to redraw the same pixels.
Solution: Flatten layouts where possible, reduce transparency layers, and use profiling tools to identify and optimize overdraw.

Memory and Resource Pressure: Large images or complex views can increase memory usage, causing freezes.
Solution: Use optimized image sizes, caching mechanisms, and recycle views when possible; avoid holding unnecessary references.

Threading Issues: UI updates off the main thread or heavy tasks on the main thread lead to inconsistent rendering.
Solution: Follow Android threading rules: update views on the main thread and offload heavy work to background threads safely.
